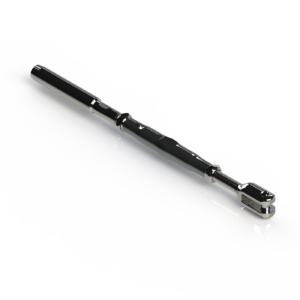

Architectural Turnbuckle, Smoothline Fork-Stud
Available Variations:
Units: Metric-M or Imperial-IClick part row for purchase options.
| SKU | Name | Wire Size | Body Thread | L Open | L Closed | ØPin | Break Load | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Inch | UNF | mm | Inch | mm | Inch | mm | Inch | kg | lbs | |||||
| ACBSLF04 | Architectural Turnbuckle, Smoothline Fork-Stud, 1/8" Wire | 3.0 | 1/8 | 1/4 | 163.0 | 6 13/32 | 118.0 | 4 21/32 | 6.4 | 1/4 | 1500 | 3300 | |||
| ACBSLF05 | Architectural Turnbuckle, Smoothline Fork-Stud, 5/32" Wire | 4.0 | 5/32 | 1/4 | 163.0 | 6 13/32 | 118.0 | 4 21/32 | 6.4 | 1/4 | 1500 | 3300 | |||
| ACBSLF06 | Architectural Turnbuckle, Smoothline Fork-Stud, 3/16" Wire | 5.0 | 3/16 | 1/4 | 163.0 | 6 13/32 | 118.0 | 4 21/32 | 6.4 | 1/4 | 1500 | 3300 | |||
Part numbers in 1/32"
CAUTION
- If DYFORM or HAMMA wire is used then select fittings for one wire size bigger. These fittings are available on request.
- Maximum Working Loading = 40% of Breaking Strength.
